c r i s p y

a CRystal population metric InSpector written in PYthon allowing for interfacing between 3DXRD / Lab-DCT and Dark-Field X-ray Microscopy (DFXM).

crispy is a Python package for analyzing crystal population metrics from 3DXRD and lab-DCT data targeting interfacing between diffraction contrast modalities.

One of the central features of crispy is the provision of per-grain reflections diffraction information for Dark-Field X-ray Microscopy (DFXM) by analyzing 3DXRD grain maps and lab-DCT grain volumes.

Interfaces for reading, analyzing, and visualizing grain maps are provided for

• 3DXRD grain maps (3D scatter of grain centroids and grain orientations)

• lab-DCT voxel volumes (3D voxel volumes where each voxel is a single crystal grain)

Authors

crispy is written and maintained by:

Axel Henningsson,

Until an associated journal publication is available, if you use this code in your research, we ask that you cite this repository.

Usecase

We can load a grain map from disc as

import crispy

# this could be a 3DXRD grain map or a lab-DCT grain volume
path_to_my_grain_map = crispy.assets.path.AL1050
grain_map = crispy.GrainMap( path_to_my_grain_map )

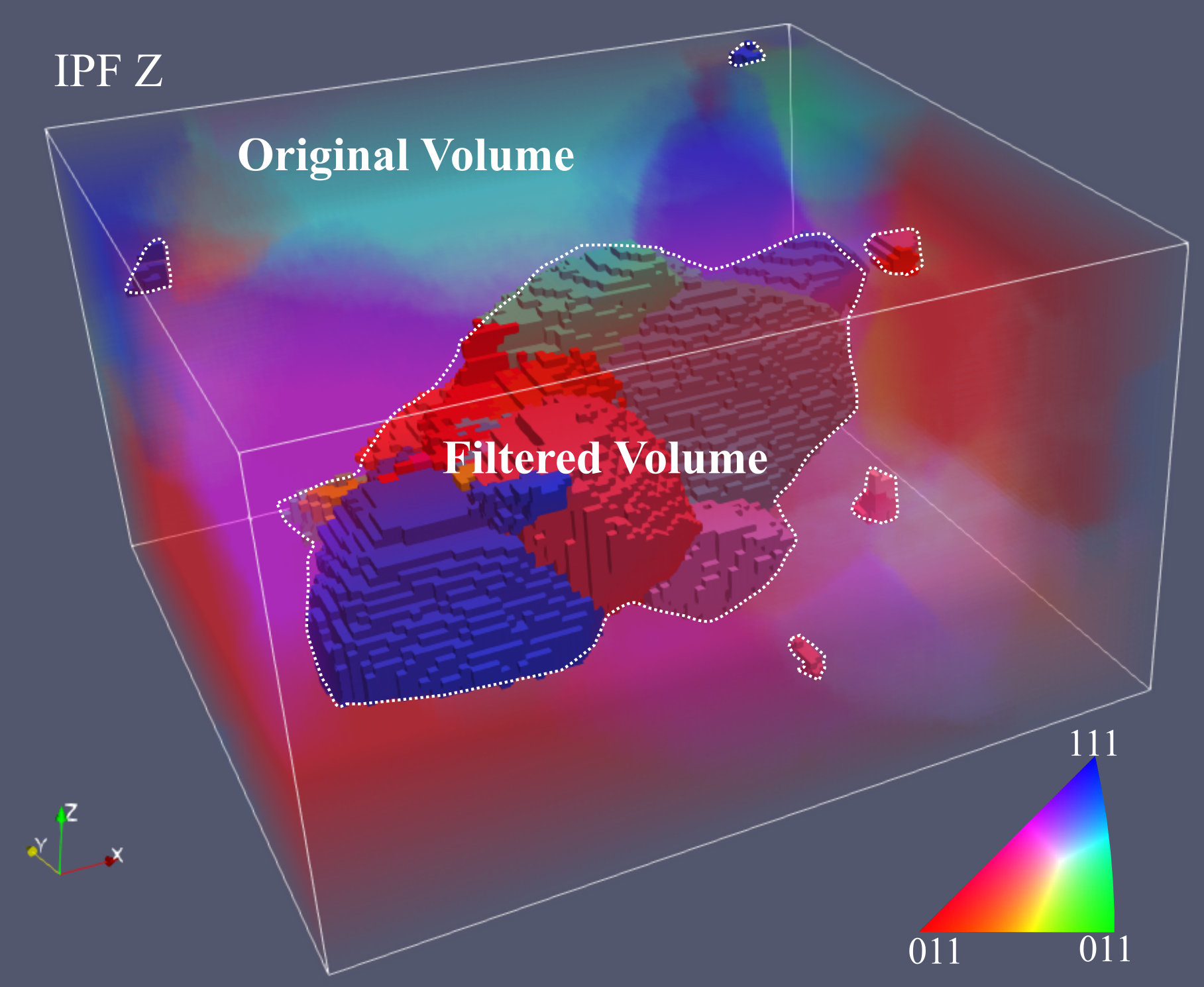

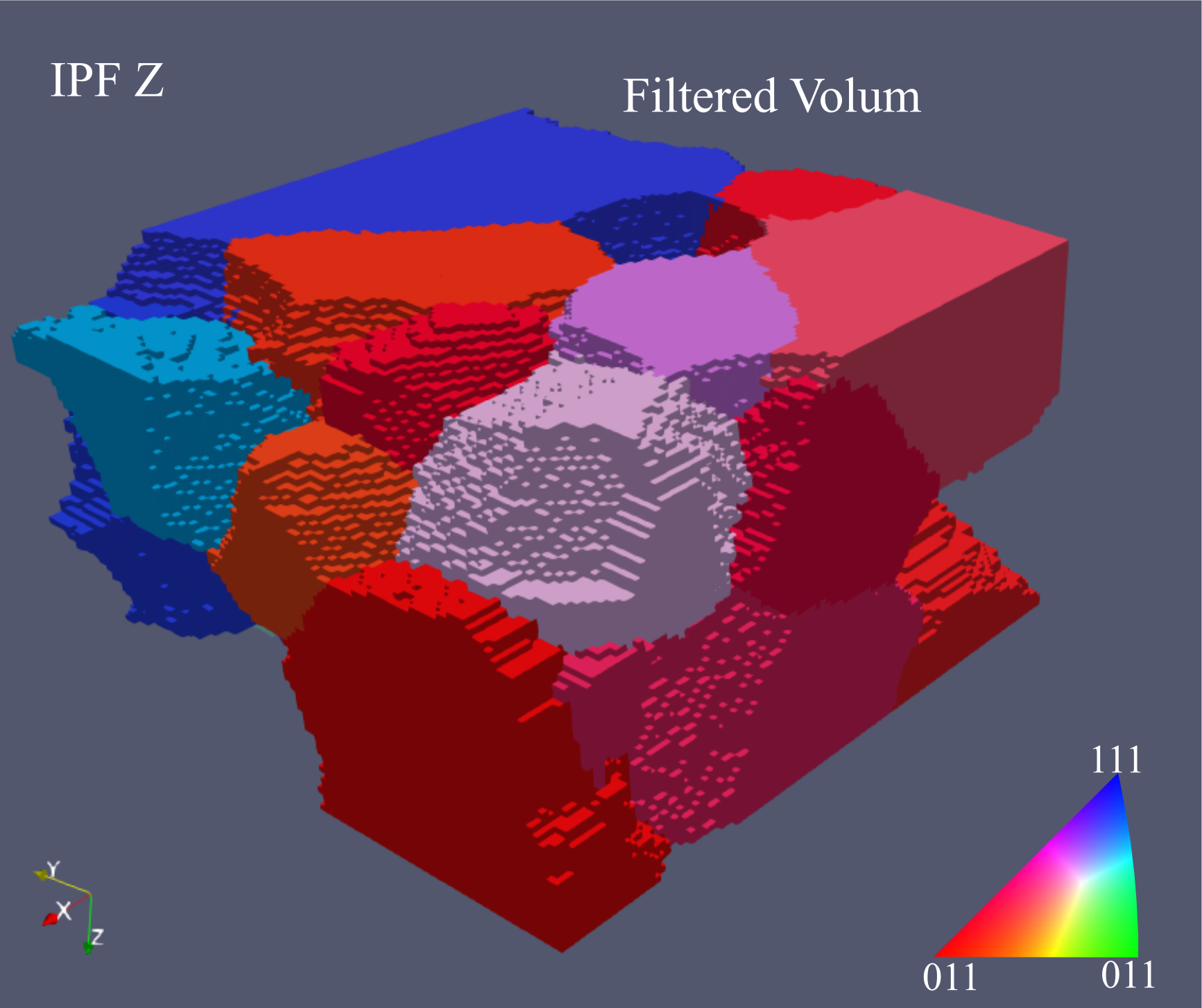

In this example we have a lab-DCT grain volume, we do some filtering to remove grains that are not of interest

grain_map.filter( min_grain_size_in_voxels = 200 )
grain_map.prune_boundary_grains()

Many more operations for manipulating grain maps are available – check out the docs!

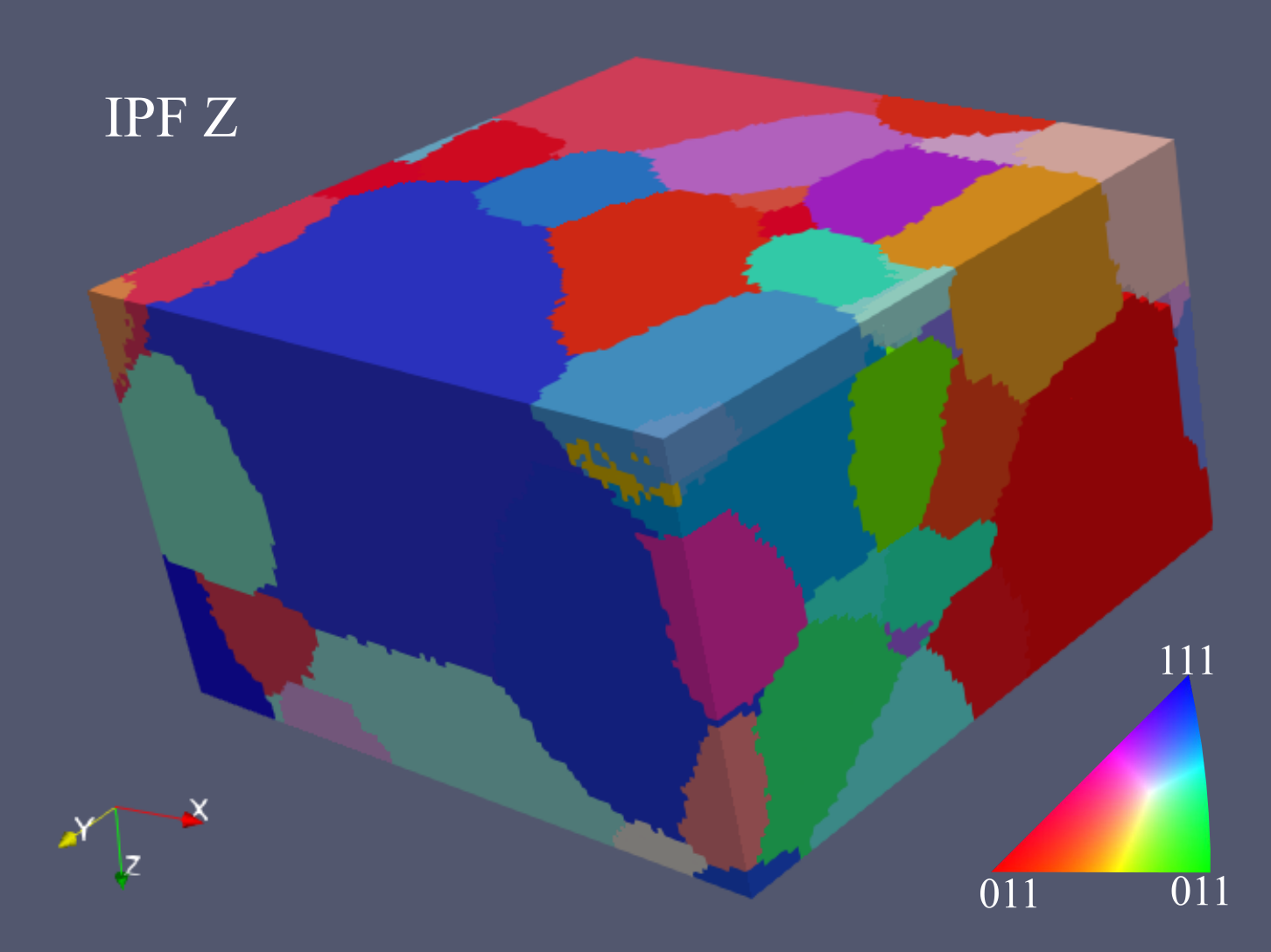

We can now write the grain map to a file to visualize in paraview

grain_map.write("grain_map.xdmf")

To search for accessible reflections in DFXM mode for eta=0, we can use the crispy.dfxm.Goniometer class as

motor_bounds = {
"mu": (0, 20), # degrees
"omega": (-30, 30), # degrees
"chi": (-7, 7), # degrees
"phi": (-7, 7), # degrees
"detector_z": (-0.04, 1.96), # metres
"detector_y": (-0.169, 1.16) # metres
}

goniometer = crispy.dfxm.Goniometer(grain_map,
                        energy=17,
                        detector_distance=4,
                        motor_bounds=motor_bounds)

goniometer.find_reflections()

The resulting reflections can be accessed as

polycrystal.grains[i].dfxm

Providing a dictionary with refleciton information for each grain.

{'hkl': array([[0.],
        [0.],
        [2.]]),
'mu': array([12.7388667]),
'omega': array([1.78967645]),
'chi': array([-4.23236192]),
'phi': array([-2.77428247]),
'residual': array([0.]),
'theta': array([10.37543294])}

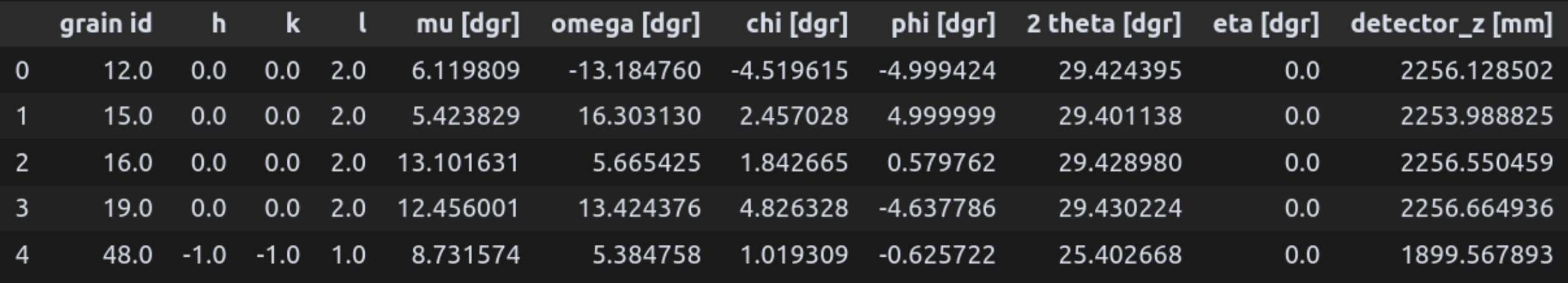

Alternatively, we can generate a pandas.DataFrame with reflection information for all grains as

df = goniometer.table_of_reflections()

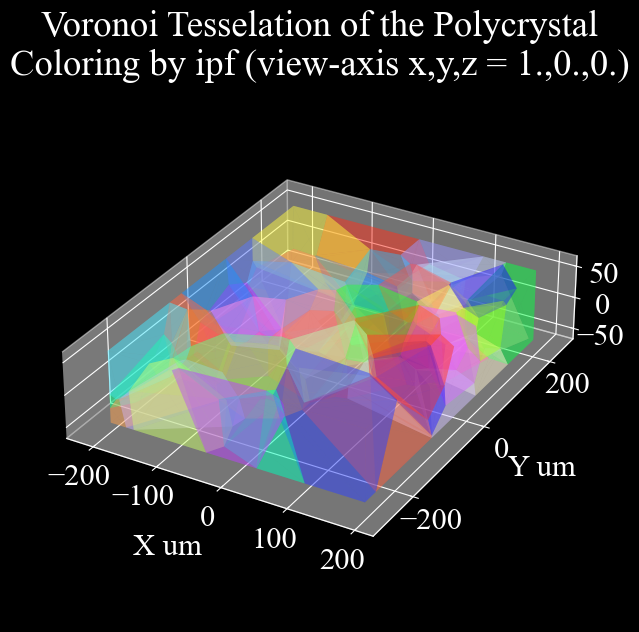

It is also possible to load a 3DXRD grain map from a file tesselate and visualize.

path_to_my_grain_map = crispy.assets.path.FEAU
grain_map = crispy.GrainMap( path_to_my_grain_map )
grain_map.tesselate()
grain_map.colorize( np.eye(3) )
crispy.visualize.mesh( grain_map )

Installation

To install crispy from source, run

git clone https://github.com/AxelHenningsson/crispy.git
cd crispy
pip install -e .

Documentation

The extended documentation is available here.

GrainMap

class crispy._grain_map.GrainMap(grain_data, group_name='grains', lattice_parameters=None, symmetry=None)

Bases: object

Factory class for creating crispy.Polycrystal objects.

Creates crispy.Polycrystal objects from either a list of ImageD11.grain.grain objects or an HDF5 file containing grain information. Supports both 3DXRD grain maps and lab-DCT grain volumes.

Example:

import crispy

# Load a 3DXRD grain map
path_to_h5_3dxrd = crispy.assets.path.FEAU
grain_map_3dxrd = crispy.GrainMap(
    path_to_h5_3dxrd,
    group_name="Fe",  # match the top key in the h5 file
    lattice_parameters=[4.0493, 4.0493, 4.0493, 90.0, 90.0, 90.0],
    symmetry=225,  # cubic fcc
)

# Load a lab-DCT grain volume
path_to_h5_lab_dct = crispy.assets.path.AL1050
grain_map_lab_dct = crispy.GrainMap(path_to_h5_lab_dct)

# Access grains and reference cell
# grain_map_3dxrd.grains
# grain_map_lab_dct.grains
# grain_map_3dxrd.reference_cell
# grain_map_lab_dct.reference_cell

The factory returns either a crispy.TDXRDMap (for 3DXRD) or a crispy.LabDCTVolume (for lab-DCT). Both types contain a grains attribute - a list of ImageD11.grain.grain objects representing individual grains. They also contain a reference cell that describes the lattice parameters and symmetry group of the material phase.

Any resulting crispy.Polycrystal can be mounted on a crispy.dfxm.Goniometer to analyze accessible diffraction reflections for Dark-Field X-ray Microscopy.

Parameters:

• grain_data (str or list of ImageD11.grain.grain) – Either an absolute path to an HDF5 file containing grain data (3DXRD map or lab-DCT volume), or a list of ImageD11 grain objects. Example files can be found in the crispy.assets module.

• group_name (str) – Name of the HDF5 group containing grain information. Only used for 3DXRD HDF5 files. Defaults to “grains”.

• lattice_parameters (numpy.ndarray) – Crystal lattice parameters [a, b, c, alpha, beta, gamma]. Defaults to None.

• symmetry (int) – Symmetry group of the phase. Defaults to None.

Returns:

Either crispy.TDXRDMap or crispy.LabDCTVolume.

Raises:

ValueError – If grain_data is neither a list of grain objects nor a valid HDF5 file path.

Polycrystal

class crispy._polycrystal.Polycrystal

Bases: object

Base class for representing polycrystalline materials.

This class serves as a base for specialized polycrystal implementations like crispy.TDXRDMap and crispy.LabDCTVolume. To create a polycrystal object, use the crispy.GrainMap factory class which dispatches to the appropriate implementation.

All polycrystal objects share common attributes including a list of ImageD11.grain.grain objects representing individual grains and a reference cell describing the material’s lattice parameters and symmetry group.

Any polycrystal object can be mounted on a crispy.dfxm.Goniometer to analyze accessible diffraction reflections for Dark-Field X-ray Microscopy experiments.

reference_cell

Reference cell describing the material’s lattice parameters and symmetry group.

Type:

ImageD11.unitcell

grains

List of grain objects representing individual crystals in the polycrystal.

Type:

list of ImageD11.grain.grain

number_of_grains

Total number of grains in the polycrystal.

Type:

int

neighbours

Array of shape (N, ...) containing grain neighbour indices where N is the number of grains and ... depends on the number of neighbours per grain. I.e., if grain i has 3 neighbours, then neighbours[i, :] contains the indices of the 3 neighbours.

Type:

numpy.ndarray

texturize()

Compute the misorientations between all grain neighbours.

Calculates and stores misorientation angles between adjacent grains in the polycrystal. This is an in-place operation that mutates the state of the crispy.Polycrystal object such that the misorientations attribute is set.

property misorientations

Return the misorientations between all grain neighbours.

Returns:

Array of misorientation angles between adjacent grains.

shape=(N, ...) where N is the number of grains and the second dimension, ..., depends on the number of neighbours per grain. I.e., if grain i has 3 neighbours, then misorientations[i, :] contains the misorientation angles between grain i and its 3 neighbours following the order of the attribute neighbours.

Return type:

numpy.ndarray

Raises:

ValueError – If misorientations have not been computed via texturize().

property ubi

Return the UBI matrices (sample frame reciprocal unit cell matrices) of all grains.

Returns:

Array of UBI matrices

with shape=(N, 3, 3), where N is the number of grains.

Return type:

numpy.ndarray

property u

Return the U matrices (orientation matrices) of all grains.

Returns:

Array of U matrices

with shape=(N, 3, 3), where N is the number of grains.

Return type:

numpy.ndarray

property orientation

Syntax sugar for u.

Returns:

Array of U matrices

with shape=(N, 3, 3), where N is the number of grains.

Return type:

numpy.ndarray

property b

Return the B matrices (crystal frame reciprocal unit cell matrices) of all grains.

Returns:

Array of B matrices

with shape=(N, 3, 3), where N is the number of grains.

Return type:

numpy.ndarray

property strain

Return the sample frame strain tensors of all grains.

Returns:

Array of strain tensors

with shape=(N, 3, 3), where N is the number of grains.

Return type:

numpy.ndarray

property crystal_system

Return the crystal system name.

Returns:

One of: triclinic, monoclinic, orthorhombic, tetragonal,

trigonal, hexagonal, or cubic.

Return type:

str

colorize(ipf_axes)

Compute and store IPF colors for all grains.

Uses orix (pyxem/orix) to calculate inverse pole figure colors for specified viewing directions and stores them in grain objects in the grains attribute under the rgb attribute.

Example:

import crispy
import numpy as np

polycrystal = crispy.assets.grain_map.tdxrd_map()

# Colorize the polycrystal with the y, and z axes
polycrystal.colorize(np.array([[0, 1, 0], [0, 0, 1]]))

# these can be accessed as follows
grain = polycrystal.grains[0]
ipf_rgb_color_x_view = grain.rgb[:, 0]
ipf_rgb_color_y_view = grain.rgb[:, 1]

Parameters:

ipf_axes (numpy.ndarray) – Viewing directions to compute IPF colors for. shape=(k, 3) where k is the number of directions.

write(file_path, *args, **kwargs)

Write the polycrystal to a file readable by Paraview.

The grain volume will be written to the specified file path, the file format is .xdmf or .vtk. The appropriate extension will automatically be added if it is not already present.

Parameters:

file_path (str) – Absolute path to the file to write the polycrystal to, must end in .xdmf or .vtk.

TDXRDMap

class crispy._tdxrd_map.TDXRDMap(grainfile, group_name='grains', lattice_parameters=None, symmetry=None)

Bases: Polycrystal

Class to represent a polycrystal as a list of grain centroids and orientations.

Parameters:

• grainfile (str or list of ImageD11.grain.grain) – Absolute path to the HDF5 file containing the grain information, or alternatively a list of ImageD11.grain.grain objects.

• group_name (str) – The name of the group in the HDF5 file containing the grain information. Defaults to “grains”.

grains

List of grains in the polycrystal.

Type:

list of ImageD11.grain.grain

number_of_grains

Number of grains in the polycrystal.

Type:

int

u

All the U matrices of the grains in the polycrystal. Shape=(N, 3, 3).

Type:

numpy.ndarray

orientations

Alias for u.

Type:

numpy.ndarray

b

All the B matrices of the grains in the polycrystal. Shape=(N, 3, 3).

Type:

numpy.ndarray

misorientations

The misorientations between all grain neighbours. shape=(N,). each sub-array contains the misorientations between the corresponding grain and its neighbours. is None before calling the texturize() method.

Type:

numpy.ndarray

add_grain_attr(grains)

property neighbours

Return the neighbours of each grain in the polycrystal.

property bounding_box

Return the bounding box of the polycrystal, shape=(3,2)

Format is: [ [min_x, max_x], [min_y, max_y], [min_z, max_z] ].

computation is done by taking the min and max of the centroids.

property extent

Return the extent of the polycrystal.

Format is: [ xwidth, ywidth, zwidth ].

computation is done by taking the min and max of the centroids.

property centroids

Return all the grain centroid postions in the polycrystal. shape=(N, 3)

property sum_peak_intensity

Return sum intensity of all indexed peaks for each grain. shape=(N,)

property number_of_peaks

Return number of indexed peaks for each grain. shape=(N,)

property median_peak_intensity

Return the median peak intensity for all grains. shape=(N,)

property mean_peak_intensity

Return the mean peak intensity for all grains. shape=(N,)

property min_peak_intensity

Return the minimum peak intensity for all grains. shape=(N,)

property max_peak_intensity

Return the maximum peak intensity for all grains. shape=(N,)

property std_peak_intensity

Return the standard deviation of peak intensities for all grains. shape=(N,)

classmethod from_array(translations, ubi_matrices)

Instantiate the polycrystal from pure translations and ubi matrices.

This circumvents the need to read a grain file and ImageD11.grain.grain objects.

Parameters:

• translations (iterable of numpy.ndarray) – 3D grain center translations each of shape=(3,).

• ubi_matrices (iterable of numpy.ndarray) – ubi matrices each of shape=(3, 3).

Returns:

The polycrystal object.

Return type:

crispy._tdxrd_map.TDXRDMAP

tesselate()

Perform a voronoi tesselation using crispy.tesselate.voronoi

Generates the polycrystal mesh with one convex polyhedra per grain.

texturize()

Compute the misorientation between all grain neighbours.

NOTE: uses xfab.symmetry.Umis.

This function sets the misorientations attribute of the polycrystal object, such that self.misorientations[i] is a shape=(n,) array of misorientations between grain number i and its n neighbours. Each grain can have a different number of neighbours. The misorientation between grain i and its j-th neighbour is always the minimum misorientation between all possible orientations taking into account the crystal system symmetry.

write(file_path, grains='all', neighbourhood=None)

Write the polycrystal to a file readable by Paraview.

The grain volume will be written to the specified file path, the file format is .xdmf or .vtk. The appropriate extension will automatically be added if it is not already present.

Parameters:

• file_path (str) – Absolute path to the file to write the polycrystal to, must end in .xdmf or .vtk.

• grains (list of int or int or str) – The grain ids to write. Defaults to “all” in which case all grains in the polycrystal are written.

• neighbourhood (int) – When not None, the grains argument is overwritten such that the grain number -neighbourhood- and all of its neighbours are written to file. Default is None.

LabDCTVolume

class crispy._lab_dct_volume.LabDCTVolume(file_path)

Bases: Polycrystal

Class to represent a voxelated lab-DCT grain volume.

Example:

import crispy
h5_file_path = crispy.assets.path.AL1050
dct_volume = crispy.LabDCTVolume(h5_file_path)

This class represents a voxelated grain volume in the laboratory frame. It reads grain volume data from an HDF5 file in the lab-DCT format and provides methods for data manipulation. As a specific implementation of the crispy.Polycrystal class, it interfaces with crispy.dfxm.Goniometer to search for DFXM reflections, useful for planning synchrotron measurements.

The lab-DCT coordinate system (as implemented by xnovo) aligns with ESR ID11 and ID03 coordinate systems: z-axis points towards the ceiling, x-axis along beam propagation, and y-axis to the left as seen by a travelling photon. Loading a lab-DCT map unifies the coordinate system with that of crispy.TDXRDMap.

Parameters:

file_path (str) –

Path to HDF5 file containing grain volume data in lab-DCT format. Required datasets:

• LabDCT/Spacing: Voxel size in microns

• LabDCT/Data/GrainId: Grain ID per voxel

• LabDCT/Data/Rodrigues: Rodrigues vector per voxel

• PhaseInfo/Phase01/UnitCell: Unit cell parameters

• PhaseInfo/Phase01/SpaceGroup: Space group of phase

reference_cell

Reference cell of grain volume

Type:

ImageD11.unitcell

voxel_size

Voxel size in microns

Type:

float

labels

Grain ID per voxel, shape (m,n,o). axis=0 is z, axis=1 is y, axis=2 is x. Coordinates increase along positive axis direction.

Type:

numpy.ndarray

X

X coordinates of voxels in microns, shape (m, n, o).

Type:

numpy.ndarray

Y

Y coordinates of voxels in microns, shape (m, n, o).

Type:

numpy.ndarray

Z

Z coordinates of voxels in microns, shape (m, n, o).

Type:

numpy.ndarray

orientations

Grain orientations in matrix vector format, shape (number_of_grains, 3, 3).

Type:

numpy.ndarray

B0

B0 matrix (reciprocal lattice vectors in lab frame), upper triangular (3,3) matrix

Type:

numpy.ndarray

grains

Array of grains, len=number_of_grains.

Type:

numpy.ndarray

number_of_grains

Total number of grains.

Type:

int

write(file_path)

Write the grain volume to paraview readable formats.

Example:

import crispy
polycrystal = crispy.assets.grain_map.lab_dct_volume('Al1050')
polycrystal.write("lab_dct_volume.xdmf")

The grain volume will be written to the specified file path, the file format is .xdmf. This extension will automatically be added if it is not already present. The resulting .xdmf file can be viewed in Paraview:

The resulting point data will contain the following attributes:

• spacing_in_um: The voxel size in microns.

• ipf_x: The x component of the IPF color.

• ipf_y: The y component of the IPF color.

• ipf_z: The z component of the IPF color.

• labels: The grain id for each voxel.

• grain_sizes: The size of each grain in units of voxels.

The data format is sparse in the sense that only non-void voxels will be written to the file.

Parameters:

file_path (str) – The path to the file to write the grain volume to. The file should be in the paraview readable format.

property center_of_mass

The center of mass of the voxel volume in units of microns.

The center of mass is defined as the arithmetic mean of the coordinates of the non-void voxels.

Returns:

numpy.ndarray of shape = (3,)

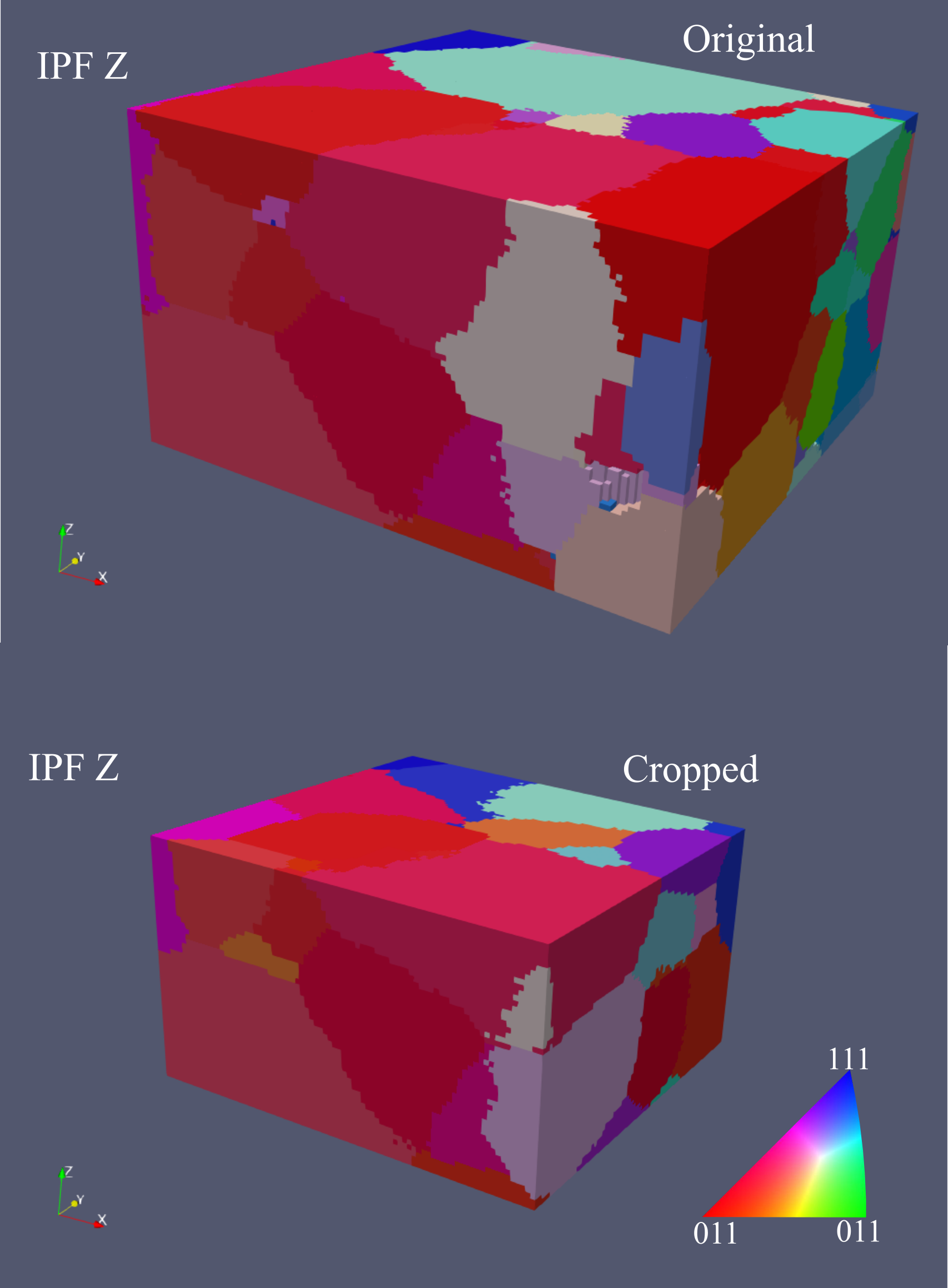

crop(xmin=None, xmax=None, ymin=None, ymax=None, zmin=None, zmax=None)

Crop the voxel volume to the specified bounds.

Example:

import crispy
dct_volume = crispy.assets.grain_map.lab_dct_volume('Al1050')
bounds = dct_volume.bounding_box
dct_volume.crop(xmin=bounds[0],
        xmax=bounds[1]//2,
        ymin=bounds[2] + 10,
        ymax=bounds[3]//2 + 10,
        zmin=bounds[4],
        zmax=bounds[5]//2,
    )
dct_volume.write("cropped_lab_dct_volume.xdmf")

The voxel volume will be cropped to the specified bounds. The attributes will be updated accordingly pruning any grains that are outside the bounds.

Parameters:

• xmin (float) – The minimum x coordinate of the crop.

• xmax (float) – The maximum x coordinate of the crop.

• ymin (float) – The minimum y coordinate of the crop.

• ymax (float) – The maximum y coordinate of the crop.

• zmin (float) – The minimum z coordinate of the crop.

• zmax (float) – The maximum z coordinate of the crop.

texturize()

Compute the misorientation between all grain neighbours.

NOTE: uses xfab.symmetry.Umis.

This function sets the misorientations attribute of the polycrystal object, such that self.misorientations[i] is a shape=(n,) array of misorientations between grain number i and its n neighbours. Each grain can have a different number of neighbours. The misorientation between grain i and its j-th neighbour is always the minimum misorientation between all possible orientations taking into account the crystal system symmetry.

center_volume()

Center the volume around the center of mass.

Example:

import crispy
dct_volume = crispy.assets.grain_map.lab_dct_volume('Al1050')
dct_volume.center_volume()
# the dct_volume.center_of_mass will now be (0,0,0)

This in place-operation will update the voxel arrays by applying the inverse translation of the current center of mass.

filter(min_grain_size_in_voxels)

Filter the grains based on their size.

Example:

import crispy
dct_volume = crispy.assets.grain_map.lab_dct_volume('Al1050')
dct_volume.filter(min_grain_size_in_voxels=10000)
dct_volume.write("filtered_lab_dct_volume.xdmf")

Grains with a size smaller than grain_size will be removed from the voxel volume. Attributes will be updated accordingly.

Parameters:

min_grain_size_in_voxels (int) – The minimum size of the grains to keep in units of voxels.

prune_boundary_grains()

Prune the boundary grains.

This will remove all grains that thuch the edge of the volume.

Example:

import crispy
dct_volume = crispy.assets.grain_map.lab_dct_volume('Al1050')
dct_volume.prune_boundary_grains()
dct_volume.write("pruned_lab_dct_volume.xdmf")

This will remove all grains that are on the boundary of the voxel volume.

translate(translation)

Translate the voxel volume by the specified translation.

The voxel volume will be translated by the specified translation. The attributes will be updated accordingly.

This is usefull for realigning the voxel volume to be used in diffraction simulations or in integration with a synchrotron measurement setting.

Parameters:

translation (np.ndarray) – The translation vector in units of microns. The translation vector should be of shape (3,).

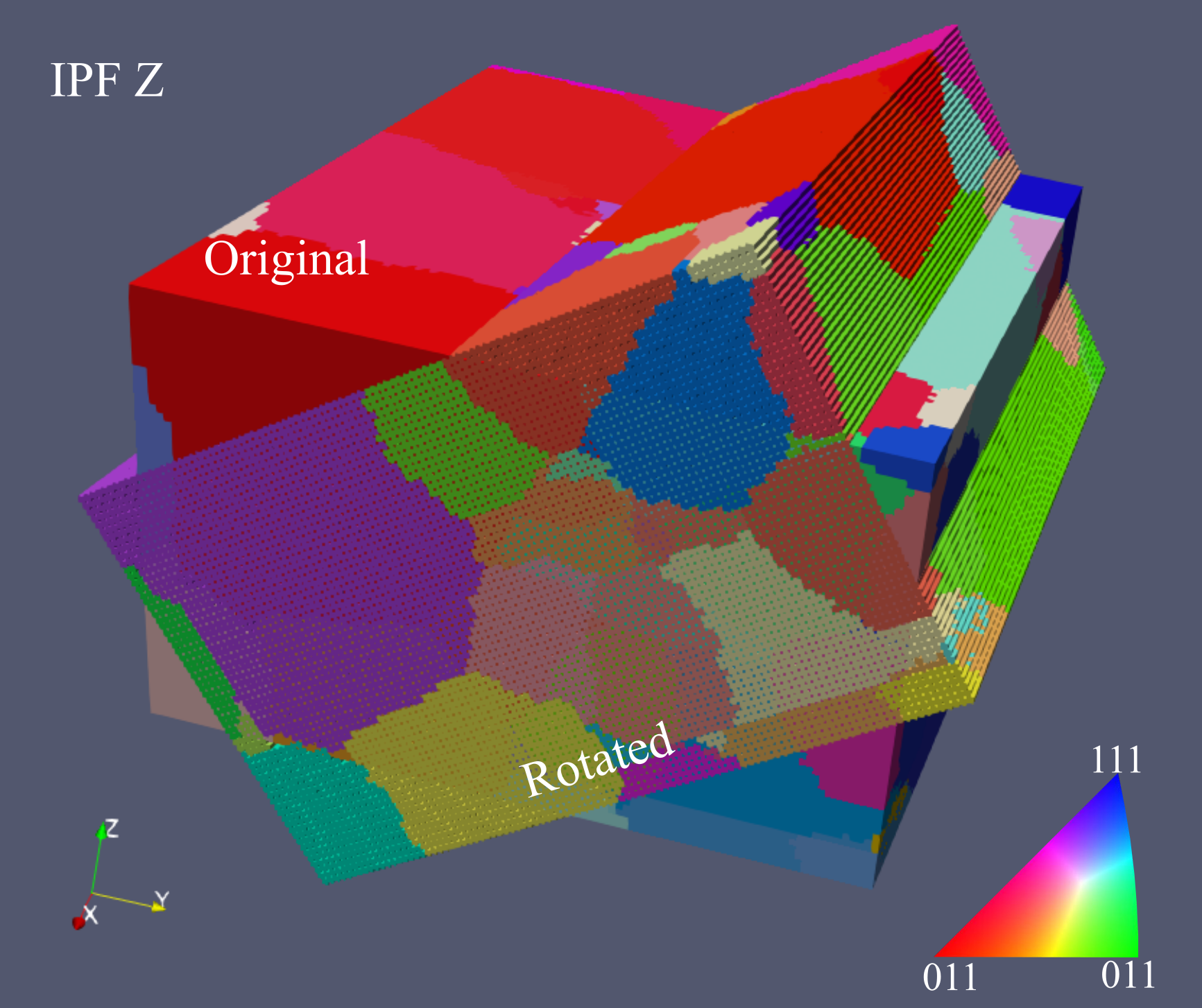

rotate(rotation)

Rotate the voxel volume by the specified rotation.

Example:

import crispy
import numpy as np
dct_volume = crispy.assets.grain_map.lab_dct_volume('Al1050')
angle = np.radians(32.3)
rotation = np.array([ [1,         0,             0      ],
                      [0,  np.cos(angle), -np.sin(angle)],
                      [0,  np.sin(angle),  np.cos(angle)]])
dct_volume.rotate(rotation)
dct_volume.write("rotated_lab_dct_volume.xdmf")

The voxel volume will be rotated by the specified rotation. The attributes will be updated accordingly. Note that the frame of reference is the lab frame which is initally aligned with the voxel volume grid. After subsequent rotations, the frame of reference may not be aligned with the voxel volume grid.

This will update both voxel coordinates and grain orientations.

This is usefull for realigning the voxel volume to be used in diffraction simulations or in integration with a synchrotron measurement setting.

Parameters:

rotation (np.ndarray or scipy.spatial.transform.Rotation) – The rotation matrix, rotation vector or rotation object to rotate the voxel volume by. if this is a rotation vector, it should be of shape (3,) with the norm equal to the angle of rotation in radians. The direction of the vector is the axis of rotation.

dfxm

class crispy.dfxm.Goniometer(polycrystal, energy, detector_distance, motor_bounds)

Bases: object

A class representing a Dark-Field X-ray Microscopy (DFXM) experimental setup.

This class calculates the required microscope angular settings to bring a set of Miller indices into diffraction condition at specific turntable rotations.

polycrystal

The polycrystal object mounted on the goniometer.

Type:

crispy.Polycrystal

energy

Photon energy in keV.

Type:

float

detector_distance

Distance between sample and detector in metres.

Type:

float

motor_bounds

Motor limits for the goniometer/hexapod in degrees (sample stage) and metres (detector translations). Keys are shown in the example below:

Type:

dict

motor_bounds = {
"mu": (0, 20), # degrees
"omega": (-22, 22), # degrees
"chi": (-5, 5), # degrees
"phi": (-5, 5), # degrees
"detector_z": (-0.04, 1.96), # metres
"detector_y": (-0.169, 1.16) # metres
}

find_reflections(alignment_tol=0.0001, maxiter=None, maxls=25, ftol=None, mask_unreachable=False)

Find all reflections reachable by the goniometer in DFXM in “simplified geometry”.

Example:

import crispy

polycrystal = crispy.assets.grain_map.tdxrd_map()

motor_bounds = {
"mu": (0, 20), # degrees
"omega": (-22, 22), # degrees
"chi": (-5, 5), # degrees
"phi": (-5, 5), # degrees
"detector_z": (-0.04, 1.96), # metres
"detector_y": (-0.169, 1.16) # metres
}

goniometer = crispy.dfxm.Goniometer(polycrystal,
                        energy=17,
                        detector_distance=4,
                        motor_bounds=motor_bounds)
goniometer.find_reflections()

# The found reflections are stored in the `dfxm` dictionary of each grain.
reflections_grain_12 = polycrystal.grains[12].dfxm

Output dictorary for reflections_grain_12:

• “chi”: array([-4.51990607])

• “hkl”: array([[0.], [0.], [2.]])

• “mu”: array([6.12038619])

• “omega”: array([-13.18363797])

• “phi”: array([-4.99889719])

• “residual”: array([0.])

• “theta”: array([14.71219735])

The reflections are found by running an optimisation algorithm that aligns the lattice normals with target vectors. The target vectors are defined as the z-axis rotated by the Bragg angle in the xz-plane into the reverse direction of the beam, which is assumed to propagate in the positive x-direction.

The reflections are stored in the dfxm dictionary of each grain with keys:

• “hkl”: Miller indices of diffracting planes

• “mu”: Mu angles at which diffraction occurs

• “omega”: Omega angles at which diffraction occurs

• “chi”: Chi angles at which diffraction occurs

• “phi”: Phi angles at which diffraction occurs

• “residual”: Misalignment between target Q-vector and aligned lattice normal

• “theta”: Bragg angles at which diffraction occurs

To access the reflections of grain i, use:

polycrystal.grains[i].dfxm[“hkl”] # etc.

Parameters:

• alignment_tol (float) – Tolerance for determining if optimisation aligned the reflection, in degrees. Represents misalignment between lattice normal and target vector. Default is 1e-4.

• maxiter (int) – Maximum iterations for L-BFGS-B optimisation. Default is None, set to 200 * N where N is number of reflections.

• maxls (int) – Maximum line search iterations per L-BFGS-B iteration. Default is 25.

• ftol (float) – Tolerance for optimisation cost function termination. Default is None, set to 1e-8 / N where N is number of reflections.

• mask_unreachable (bool) – If True, mask reflections unreachable by goniometer/hexapod. A reflection is unreachable if misalignment exceeds the sum of absolute motor bounds. Default is False. Masking speeds up optimisation by excluding unreachable reflections. When enabled, unreachable reflections have np.nan values in solution and residuals.

table_of_reflections()

Compile a pandas.DataFrame of the reflections found by find_reflections().

Example:

import crispy

polycrystal = crispy.assets.grain_map.tdxrd_map()

motor_bounds = {
"mu": (0, 20), # degrees
"omega": (-22, 22), # degrees
"chi": (-5, 5), # degrees
"phi": (-5, 5), # degrees
"detector_z": (-0.04, 1.96), # metres
"detector_y": (-0.169, 1.16) # metres
}

goniometer = crispy.dfxm.Goniometer(polycrystal,
                        energy=17,
                        detector_distance=4,
                        motor_bounds=motor_bounds)
goniometer.find_reflections()
df = goniometer.table_of_reflections()

Output pandas.DataFrame for df looks like this:

Raises:

ValueError – if find_reflections() has not been run.

Returns:

DataFrame of the reflections found

by find_reflections(). For each grain, the DataFrame contains column in accordance with the keys in the dfxm dictionary of the grain. see find_reflections() for more details.

Return type:

pandas.DataFrame

find_symmetry_axis(alignment_tol=0.0001, maxiter=None, maxls=25, ftol=None, mask_unreachable=False)

Find all Miller indices that can be aligned with the z-axis within motor bounds.

This allows for the identification of various oblique imaging geometries in which multiple reflections are reachable by pure z-axis rotations.

Example:

import crispy

polycrystal = crispy.assets.grain_map.lab_dct_volume("Al1050")

motor_bounds = {
"mu": (0, 20), # degrees
"omega": (-30, 30), # degrees
"chi": (-7, 7), # degrees
"phi": (-7, 7), # degrees
"detector_z": (-0.04, 1.96), # metres
"detector_y": (-0.169, 1.16) # metres
}

goniometer = crispy.dfxm.Goniometer(polycrystal,
                        energy=17,
                        detector_distance=4,
                        motor_bounds=motor_bounds)
goniometer.find_symmetry_axis()

Finds all reachable reflections in the polycrystal using an optimisation algorithm that aligns lattice normals with target vectors (defined as the z-axis). The reflections are stored in the polycrystal grain objects as dictionaries named symmetry_axis with the following keys:

• “hkl”: Miller indices that can diffract

• “mu”: Mu angles at which diffraction occurs

• “omega”: Omega angles at which diffraction occurs

• “chi”: Chi angles at which diffraction occurs

• “phi”: Phi angles at which diffraction occurs

• “residual”: Radians between lattice normal and z-axis

To access the symmetry axis of grain i, use:

polycrystal.grains[i].symmetry_axis[“hkl”] # etc.

Parameters:

• alignment_tol (float) – Tolerance in degrees for determining if the optimisation aligned the lattice normal with the z-axis. Represents the misalignment between lattice normal and target vector. Default is 1e-4.

• maxiter (int) – Maximum iterations for L-BFGS-B optimisation. Default is None (set to 200 * N, where N is number of reflections).

• maxls (int) – Maximum line search iterations per L-BFGS-B iteration. Default is 25.

• ftol (float) – Tolerance for optimisation cost function termination. Default is None (set to 1e-8 / N, where N is number of reflections).

• mask_unreachable (bool) – If True, mask unreachable lattice normals by the goniometer/hexapod. A lattice normal is unreachable if its misalignment exceeds the maximum sum of absolute motor bounds. Default is False. Masking speeds up optimisation by excluding unreachable lattice normals. When enabled, solution and residual arrays contain np.nan for unreachable lattice normals.

vizualise

The vizualisation module contains functions genreally targeting visualising voronoi tesselations of polycrystals. I.e these function are usefull for crispy.TDXRDMap <crispy._tdxrd_map.TDXRDMap>

For lab-DCT volumes, see crispy.LabDCTVolume.write() <crispy._lab_dct_volume.LabDCTVolume.write> for writing to paraview files to disc for visualization.

crispy.vizualise.mesh(polycrystal, neighbourhood=None, select=None)

Plot the Voronoi tesselation of the polycrystal.

Example:

import matplotlib.pyplot as plt
import numpy as np
import crispy

polycrystal = crispy.assets.grain_map.tdxrd_map()
polycrystal.tesselate()
polycrystal.colorize(np.eye(3))

fig, ax = crispy.vizualise.mesh(polycrystal)
plt.show()

Parameters:

• polycrystal (crispy.TDXRDMap) – The polycrystal object.

• neighbourhood (int, optional) – When not None, the grain with number -neighbourhood- and all of its neighbours are plotted. Default is None, in which case the entire polycrystal mesh is plotted.

• select (list of int, optional) – List of grain indices to plot. Default is None.

Returns:

matplotlib.figure.Figure, matplotlib.axes.Axes

assets

Module to load example data and phantoms.

Here you will find example datasets and phantoms that can be used to test and demonstrate the functionality of the crispy package. These assets are stored in the assets directory of the repository.

class crispy.assets.path

Bases: object

Absolute paths to various assets.

FEAU

Path to the 3DXRD grain map of a FeAu sample. :no-index:

SILICON

Path to the lab-DCT grain volume of three silicon single crystals shards. :no-index:

AL1050

Path to the lab-DCT grain volume of a small polycrystalline Al1050 sample. :no-index:

FEAU = '/home/naxhe/workspace/crispy/assets/FeAu_0p5_tR_ff1_grains.h5'

SILICON = '/home/naxhe/workspace/crispy/assets/lab_dct_silicon.h5'

AL1050 = '/home/naxhe/workspace/crispy/assets/lab_dct_Al1050.h5'

class crispy.assets.grain_map

Bases: object

Class to load example grain maps.

Various assets and example dataset are available in the assets directory.

tdxrd_map()

Load a grain map from the ID11 beamline at ESRF on a FeAu sample.

Returns:

List of grains in the grain map.

Return type:

list of ImageD11.grain.grain

lab_dct_volume()

Load a lab-dct volume.

Parameters:

name (str) – The name of the lab-dct volume to load. This can be one of the following: - “Al1050”: A lab-dct volume of a small polycrystalline Al1050 sample. - “silicon”: A lab-dct volume of three silicon single crystals shards. Defaults to “Al1050”.

Raises:

ValueError – If the name is not one of the available assets.

Returns:

Lab-dct volume.

Return type:

crispy._lab_dct_volume.LabDCTVolume
